Hold-down clamp G
Trench Part No. GKT 38 G
|OBO Item No. 6017037
|EAN 4012196307937
Trench Part No.
GKT 38 G
OBO Item No.
6017037
Smallest selling unit: 20 piece
20piece
piece
Description

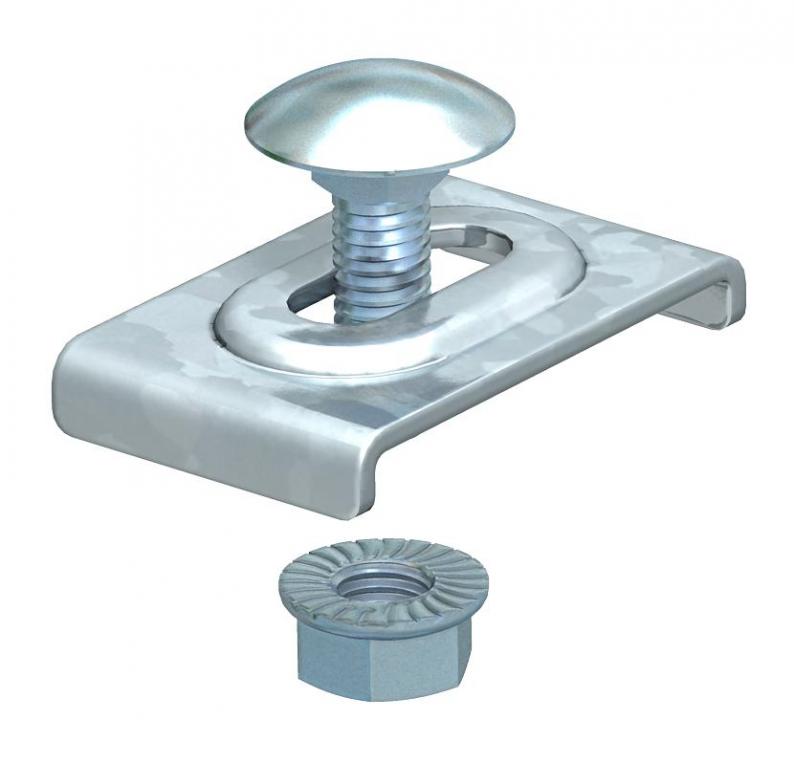

Clamp for fastening barrier strip in mesh cable trays.
Including FRS M6 x 20 bolt with flange nut.
Technical data
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |

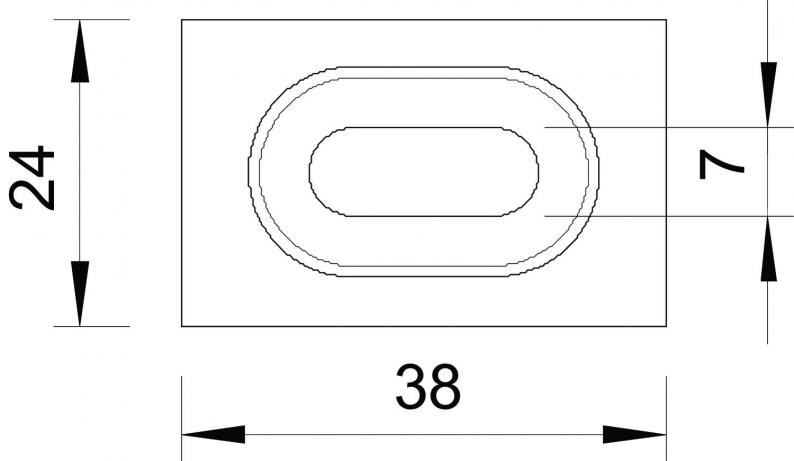

| Dimension | 38 x 24 |
| ROHS-conformant | yes |
| Surface | Electrogalvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
0,0518 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0518 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 00518 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Declarations (4)
Product images (2)
3D data downloads (2)
Tender specifications (1)
