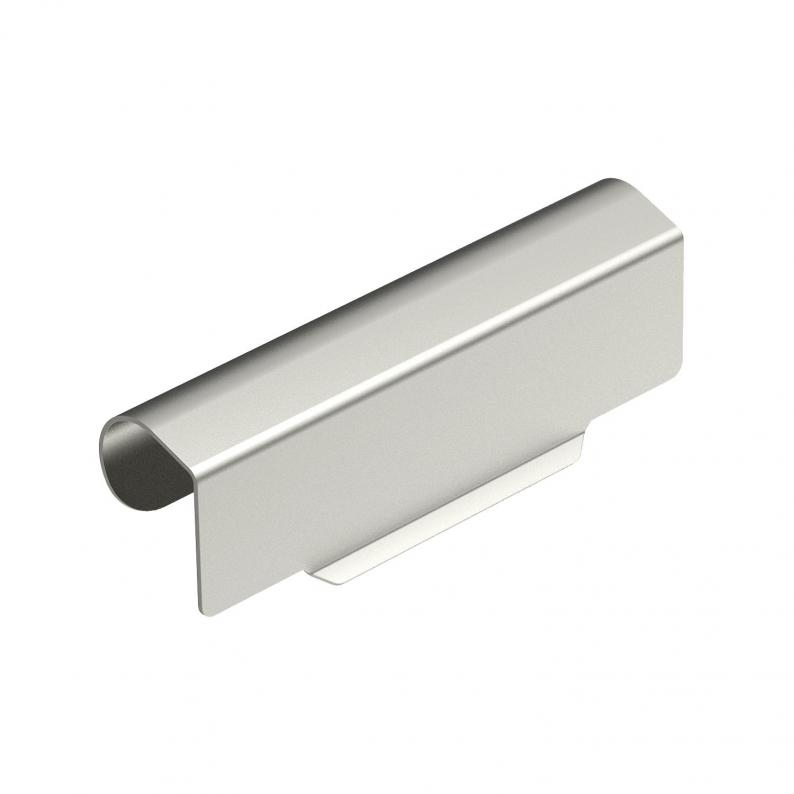

A2 barrier strip connector
Trench Part No. TSGV A2 | OBO Item No. 6067970 | EAN 4012195694724
Trench Part No.
TSGV A2
OBO Item No.
6067970
Smallest selling unit: 10 piece
10piece
Description
Separating retainer connector for screwless connection of the TSG separating retainer in all side heights.
Technical data

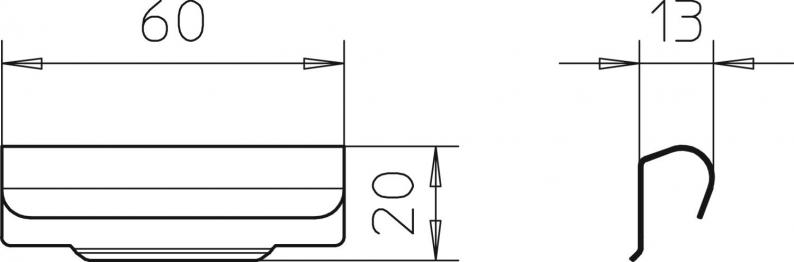

Dimensions
| Length | 60 mm |
|---|---|
| Width | 20 mm |
| Height | 15 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Fastening type | Clamp fastening |
| Surface | Bright, treated |
| Material | Stainless steel 1.4310 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0568 kg CO2e / 1 Piece |
