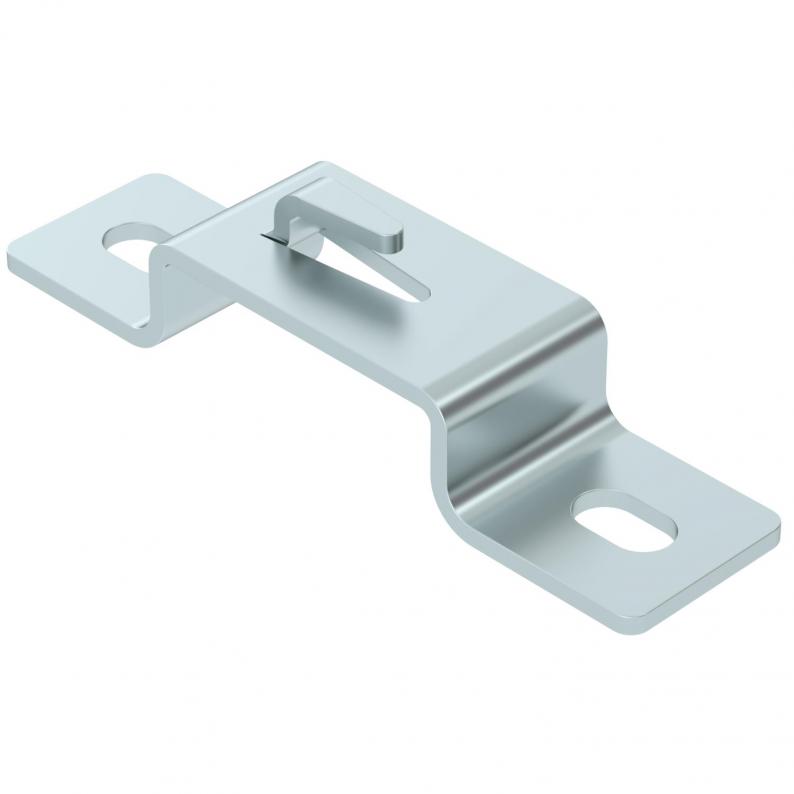

Stand-off bracket FS

Stand-off bracket FS

Trench Part No. DBLG 20 050 FS | OBO Item No. 6015646 | EAN 4012196961528

Show all variants
Trench Part No.
OBO Item No.
Dimension B
Tray fastening
Retaining lug
Surface
Strip galvanized
Material
Steel

Smallest selling unit: 20 piece

DescriptionTechnical dataDownloadsVariants

Description

To erect mesh cable trays on the floor. Also usable as wall fixing.

Screwless fastening of the mesh cable tray on the stand-off bracket.

Technical data

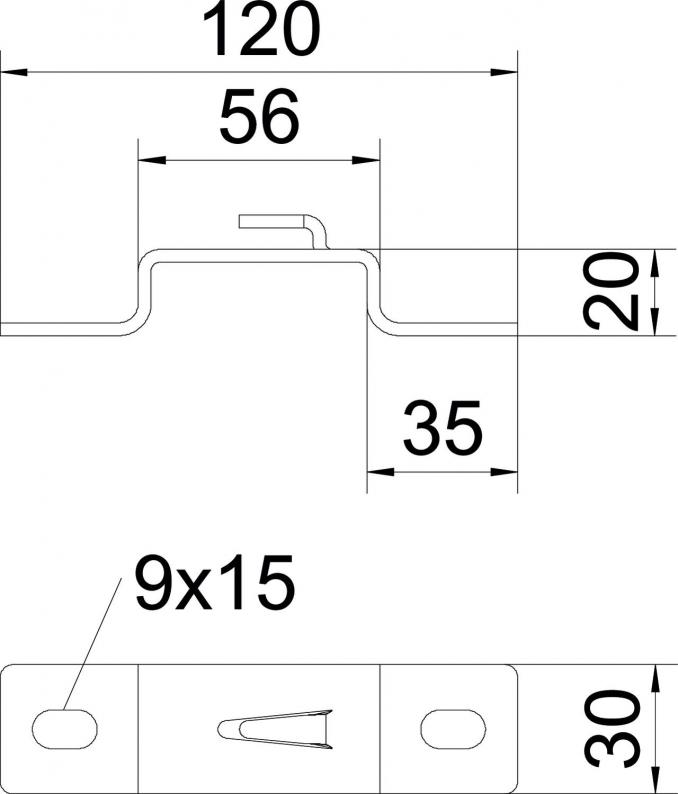

Dimensions

Height20 mm
Dimension L120 mm
Dimension A30 mm
Dimension B56 mm

Technical data

Suitable for mesh cable trayyes
Suitable for cable ladderno
Suitable for cable trayno
Version forWall/ceiling clamp, trapezoidal profile
Tray fasteningRetaining lug
DimensionB50mm
SurfaceStrip galvanized
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate0,2412 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Variants

Dimension B
DBLG 20 050 FS
OBO Item No.
6015646
Dimension B
56
Tray fastening
Retaining lug
Surface
Strip galvanized
Material
Steel
DBLG 20 100 FS
OBO Item No.
6015654
Dimension B
106
Tray fastening
Retaining lug
Surface
Strip galvanized
Material
Steel
DBLG 20 150 FS
OBO Item No.
6015658
Dimension B
156
Tray fastening
Retaining lug
Surface
Strip galvanized
Material
Steel
DBLG 20 200 FS
OBO Item No.
6015662
Dimension B
206
Tray fastening
Retaining lug
Surface
Strip galvanized
Material
Steel
DBLG 20 300 FS
OBO Item No.
6015670
Dimension B
306
Tray fastening
Retaining lug
Surface
Strip galvanized
Material
Steel
DBLG 20 400 FS
OBO Item No.
6015689
Dimension B
406
Tray fastening
Retaining lug
Surface
Strip galvanized
Material
Steel
DBLG 20 500 FS
OBO Item No.
6015693
Dimension B
506
Tray fastening
Retaining lug
Surface
Strip galvanized
Material
Steel
DBLG 20 600 FS
OBO Item No.
6015697
Dimension B
606
Tray fastening
Retaining lug
Surface
Strip galvanized
Material
Steel
