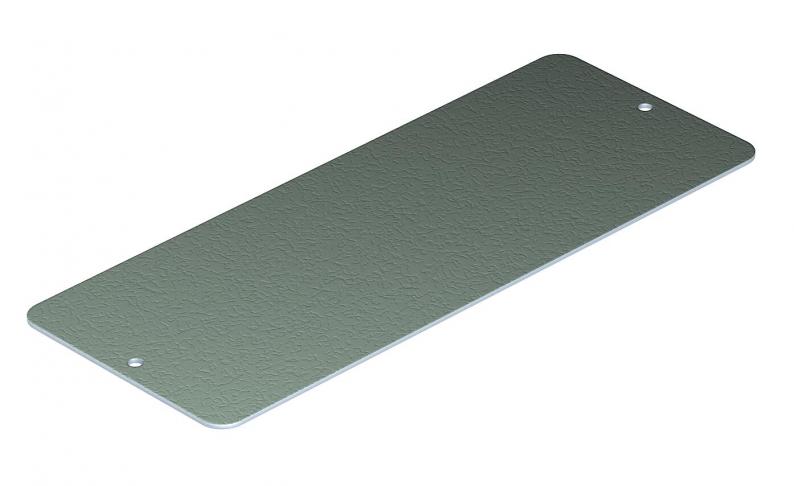

Cover plate APMT5/0

Cover plate APMT5/0

Trench Part No. AP MT5 0 | OBO Item No. 7406904 | EAN 4012195109792

Show all variants
Trench Part No.
AP MT5 0
OBO Item No.
7406904

Smallest selling unit: 20 piece

DescriptionTechnical dataDownloadsVariants

Description

For blanking locking on an unused compartment in an MT mounting support.

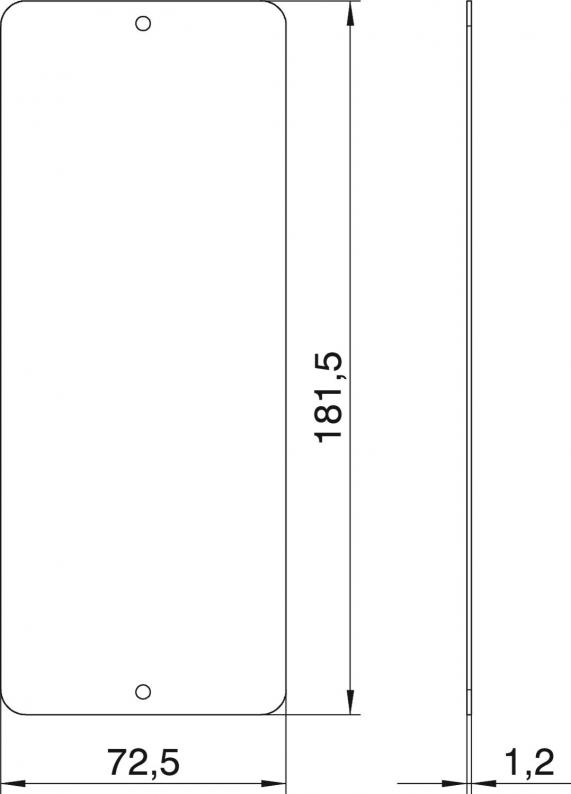

L = 181.5 mm.

Technical data

Dimensions

Length1815 mm
Width725 mm
Height12 mm

Technical data

Dimension182x72,5mm
SurfaceStrip galvanised/organically coated
MaterialSteel
ColourGrey-white; RAL 9002
CO2 Footprint (GWP) Cradle-to-Gate0,4021 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (2)

Variants

AP MT5 0
OBO Item No.
7406904
