GES9/10 service trunking for OKA-T, 3-compartment
Trench Part No. GES9 10OK U 7011 | OBO Item No. 7402290 | EAN 4012195436423
Trench Part No.
GES9 10OK U 7011
OBO Item No.
7402290
Opening mechanism
Handle
Colour
Iron grey; RAL 7011
Smallest selling unit: 1 piece
1piece
Description

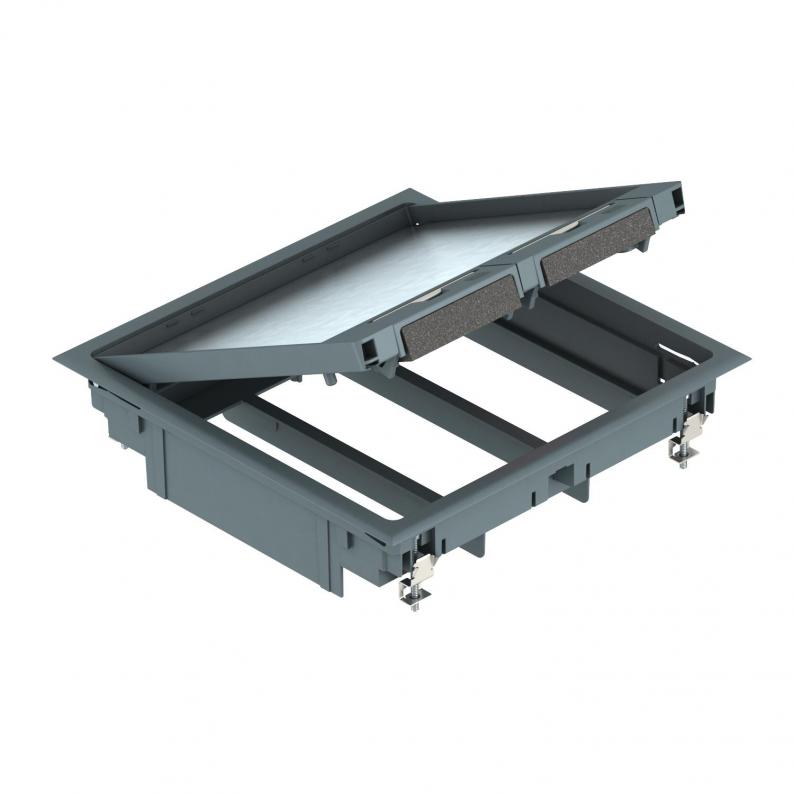

Square flushfloor installation unit for mounting in an OKA-T trunking system. With mounting support to accept up to three APMT5 cover plates.
Service outlet with handle clamp for mounting in a OKA-T trunking system. With mounting support for receiving up to three APMT5 cover plates.
Service outlet with handle clamp for mounting in a OKA-T trunking system. With mounting support for receiving up to three APMT5 cover plates.
Technical data
Technical data
| Floor covering thickness | 10 mm |
|---|---|
| Suitable for screed-flush closed underfloor ducts | no |
| Seal installation option | no |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Suitable for wet care | no |
| Cable outlet version | Swivellable cord outlet |
| Opening mechanism | Handle |
| Clamping range D, max. | 36 mm |
| Clamping range D, min. | 14 mm |

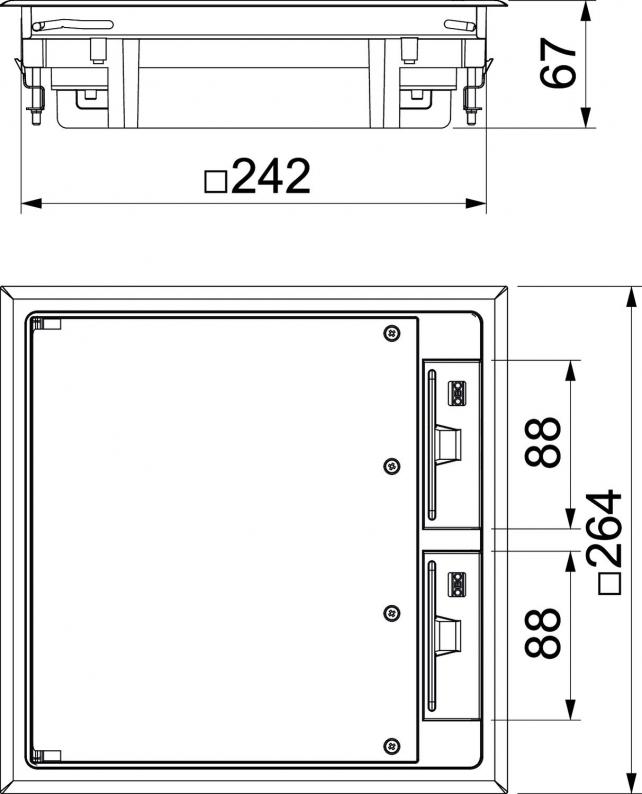

| Dimension | 264x264x67 |
| Material | Polyamide |
| Colour | Iron grey; RAL 7011 |
| CO2 Footprint (GWP) Cradle-to-Gate | 5,7547 kg CO2e / 1 Piece |
