Mesh cable tray GR-Magic® 35 G
Trench Part No. GRM 35 50 G | OBO Item No. 6000060 | EAN 4012195624813
Trench Part No.
OBO Item No.
Length
Width
Height
Usable cross-section
Wire diameter
Maintain electrical functions
no
Smallest selling unit: 3 m
3m
Description
Mesh cable tray with shaped connector of side height 35 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm (exception: GRM 35/50 = 20 x 100 mm).
Technical data

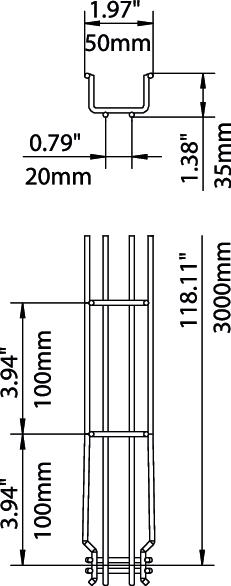

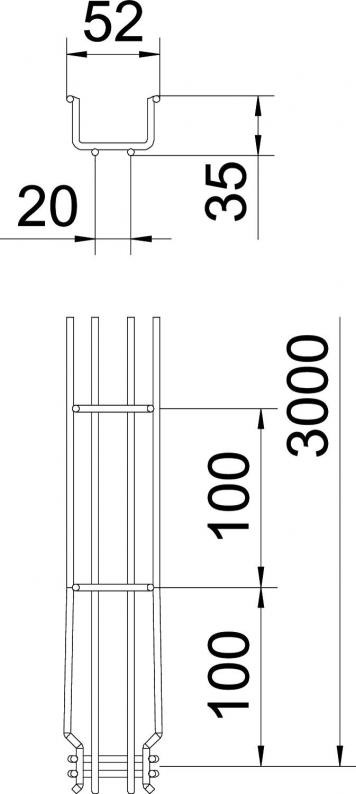

Dimensions
| Length | 3.000 mm |
|---|---|
| Width | 50 mm |
| Height | 35 mm |
| Dimension B | 52 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Usable cross-section | 94 cm² |
| Rustproof steel, pickled | no |
| Usable cross-section | 1750 mm² |
| Integrated partition | Without |
| Screwless connector | yes |
| Profile shape | U-shaped |
| Wire diameter | 39 mm |
| Dimension | 35x50x3000 |
| Surface | Electrogalvanized |
| Material | Steel |
| Colour | zinc |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Click fastening |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,8706 kg CO2e / 1 Meter |
Loads
| Support spacing 2.0 m | 01 kN/m |
|---|---|
| Support spacing 1.0 m | 025 kN/m |
| Support spacing 1.5 m | 011 kN/m |
