Mesh cable tray GR-Magic® 55 G

Mesh cable tray GR-Magic® 55 G

Trench Part No. GRM 55 50 G
|
OBO Item No. 6001441
|
EAN 4012195430957
Show all variants
Trench Part No.
OBO Item No.
Length
Width
Height
Maintain electrical functions
Usable cross-section
Wire diameter

Smallest selling unit: 3 m

m

DescriptionTechnical dataDownloadsVariants

Description

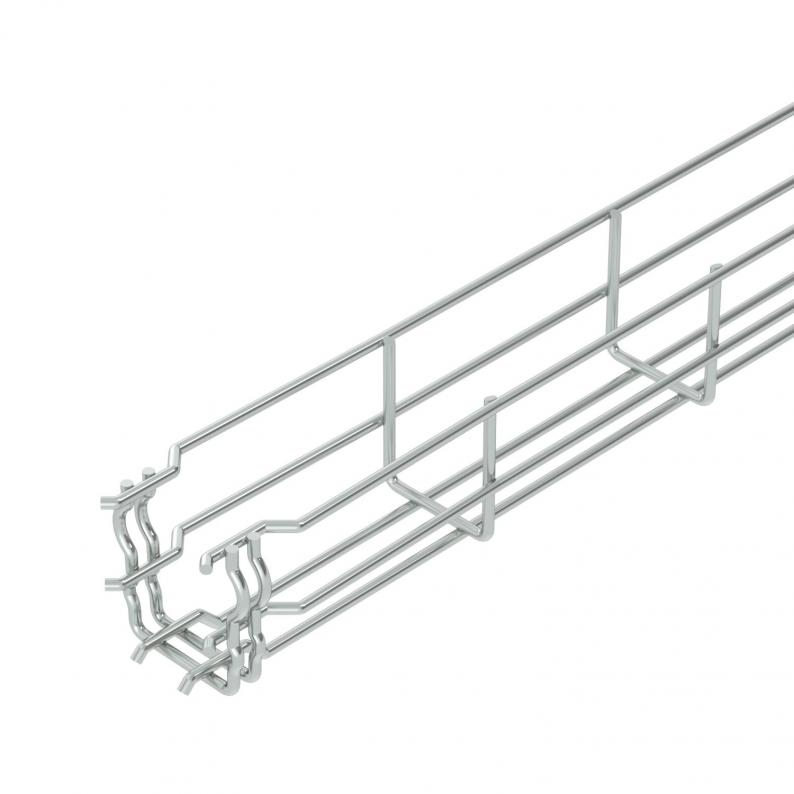

Mesh cable tray with shaped connector of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

You can find detailed information regarding the UL classification in the respective certification.

No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm (exception: GRM 55/50 = 20 x 100 mm). Tested for the maintenance of electrical function according to DIN 4102 Part 12 (type: GRM 55 200 4.8 G, GRM 55 300 G, GRM 55 400 G, mounting work and parameters according to valid test certificate).

Tested for installation above suspended fire protection ceilings (type: GRM 55 100 G, GRM 55 200 G, GRM 55 300 G, GRM 55 400 G, fire load 30 minutes, mounting work and parameters according to fire protection reports).

Technical data

Dimensions

Length3.000 mm
Width50 mm
Height55 mm
Dimension B52 mm
Dimension H58 mm

Technical data

Maintain electrical functionsyes
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section16 cm²
Rustproof steel, pickledno
Usable cross-section1600 mm²
Integrated partitionWithout
Screwless connectoryes
Profile shapeU-shaped
Wire diameter39 mm

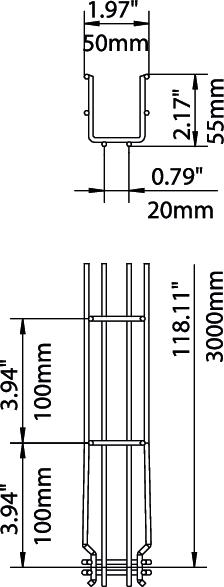

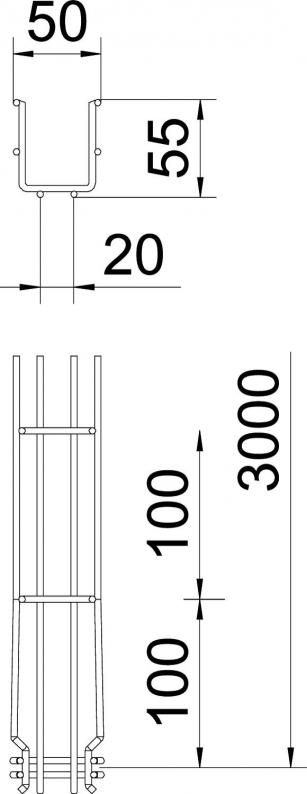

Dimension55x50x3000
SurfaceElectrogalvanized
MaterialSteel
Colourzinc
Fire protectionUse of fire protection ceilings
Load test type according to IEC 61537Type II
Type of connector, cable support systemClick fastening
CO2 Footprint (GWP) Cradle-to-Gate1,2752 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m01 kN/m
Support spacing 2.5 m01 kN/m
Support spacing 1.0 m035 kN/m
Support spacing 1.5 m02 kN/m

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (9)
Declarations (5)
Certificates (8)
Instructions and Aid (3)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Variants

Width
Maintain electrical functions
Usable cross-section
Wire diameter
GRM 55 50 G
OBO Item No.
6001441
Length
3.000
Width
50
Height
55
Maintain electrical functions
yes
Usable cross-section
16
Wire diameter
39
GRM 55 100 G
OBO Item No.
6001442
Length
3.000
Width
100
Height
55
Maintain electrical functions
yes
Usable cross-section
40
Wire diameter
39
GRM 55 150 G
OBO Item No.
6001444
Length
3.000
Width
150
Height
55
Maintain electrical functions
yes
Usable cross-section
63
Wire diameter
39
GRM 55 200 G
OBO Item No.
6001446
Length
3.000
Width
200
Height
55
Maintain electrical functions
yes
Usable cross-section
87
Wire diameter
39
GRM 55 300 G
OBO Item No.
6001448
Length
3.000
Width
300
Height
55
Maintain electrical functions
yes
Usable cross-section
129
Wire diameter
48
GRM 55 400 G
OBO Item No.
6001450
Length
3.000
Width
400
Height
55
Maintain electrical functions
yes
Usable cross-section
175
Wire diameter
48
GRM 55 450 G
OBO Item No.
6001451
Length
3.000
Width
450
Height
55
Maintain electrical functions
no
Usable cross-section
195
Wire diameter
48
GRM 55 500 G
OBO Item No.
6001452
Length
3.000
Width
500
Height
55
Maintain electrical functions
no
Usable cross-section
220
Wire diameter
48
GRM 55 600 G
OBO Item No.
6001454
Length
3.000
Width
600
Height
55
Maintain electrical functions
no
Usable cross-section
265
Wire diameter
48
