Corner connector G
Trench Part No. GEV 36 G | OBO Item No. 6016715 | EAN 4012196307876
Trench Part No.
GEV 36 G
OBO Item No.
6016715
Smallest selling unit: 20 piece
20piece
Description

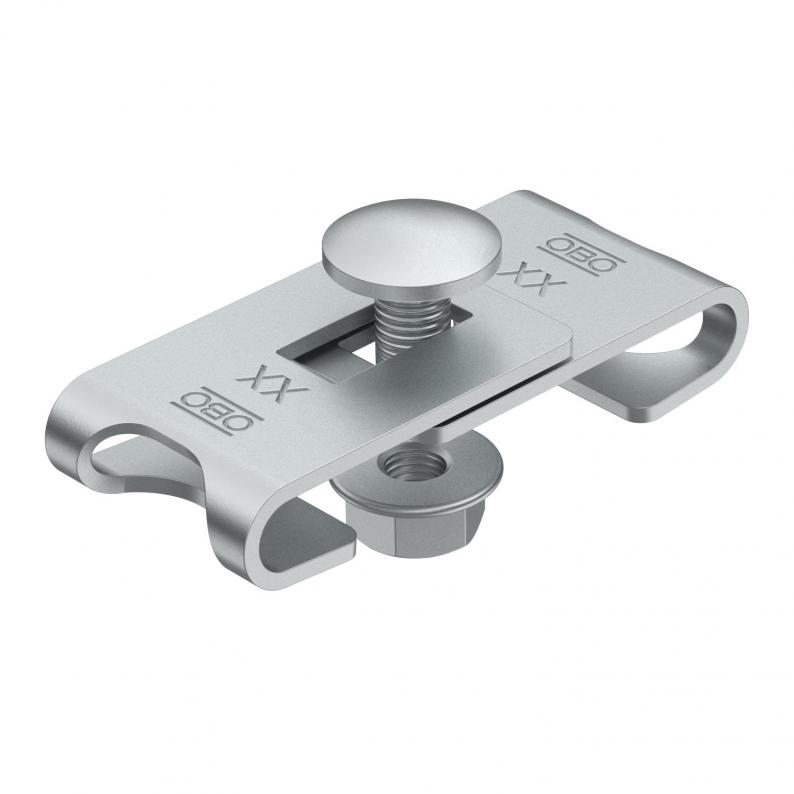

Corner connector for the creation of mesh cable tray bend elements.
Including FRS M6 x 12 bolt with flange nut.
Technical data
Dimensions
| Length | 56 mm |
|---|---|
| Width | 23 mm |
| Height | 16 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Dimension | 42-54 x 23 |
| Suitable for mesh cable tray wire, max. | 49 mm |
| Suitable for mesh cable tray wire, min. | 39 mm |
| Version for | Corner connector |
| Connection type | Screw connector |
| Surface | Electrogalvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0733 kg CO2e / 1 Piece |
